CNC Milling Tool | High-Performance Carbide & HSS Milling Cutter

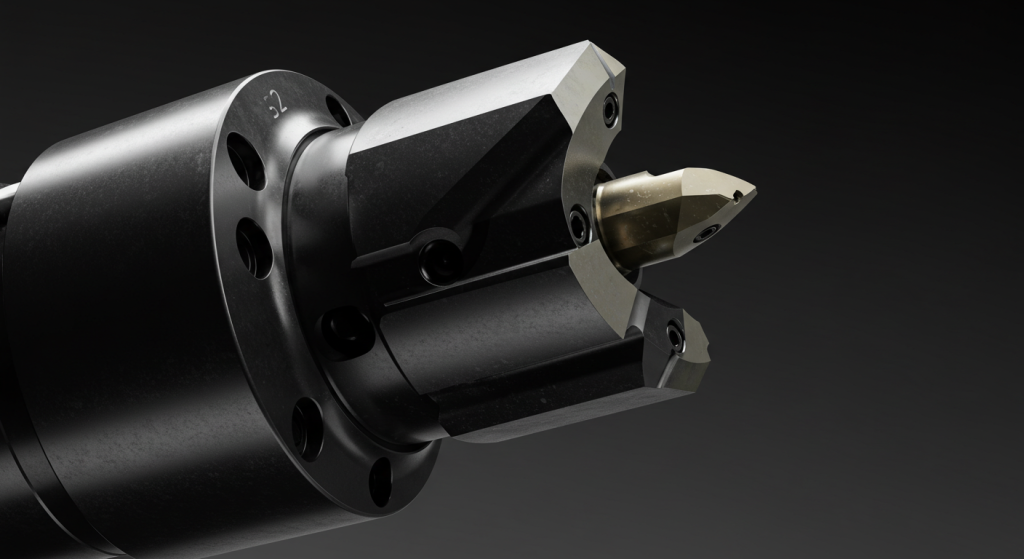

What is a CNC Milling Tool?

• A CNC milling machine refers to a cutting tool that is designed to be used in CNC machining. It is used in milling machines to cut material out of a workpiece in a rotational manner. CNC milling tool come in a wide variety, differing in terms of design, material, coating, and usage, but are all similar in the sense that they can cut with accuracy and repeatability.
• The current generation of CNC milling cutters features numerous flutes, special finishes, and rationalized geometries to improve chip evacuation, reduce vibration, and increase tool life. The tools are mandatory where high accuracy is required, like in aerospace, automobile, mold-making, and tooling.

CNC Milling: Materials and Coatings

The material and coating of the milling tool directly affect cutting effectiveness and the life of the CNC milling tool. Good tools are often cast:

• ZK30UF 10 Percent Cobalt, 0.6mm Grain Size: It is very hard and has good wear resistance.
• Solid Carbide CNC Tool: It is very rigid, fast cutting, and very precise.
• High-Speed Steel (HSS) CNC Cutter: It is most applicable when utilizing a moderate-speed cutter and making general-purpose use of it.

Coatings enhance the operations of tools in a hard environment:

• TiSiN Coating: This type has a very high surface hardness and wear resistance, and therefore, a long service life.
• AlTiN and AlTiSiN Surface Finishes: Improve oxidation resistance, high-speed machining, and life.
• Bronze Edge or TiN Finishes: Are less frictional, more effective at removing chips, and improve surface finish.

These advanced materials and finishes allow the CNC tools to mill a wide range of materials, such as soft aluminum to hardened steel, and do so with acceptable accuracy.

Key Features of the CNC Milling Tools

High performance CNC milling tool is fitted with features to optimize machine operation:

• Center Drill Design: Selects centering and chamfering design to put holes in place and make holes better.
• Full Grinding Edge: This gives the tool sharpness and lessens wear, and extends its lifespan.
• Big Core Diameter: enhances rigidity, vibration, and breakage of the tool.
• Smooth Handle with Chamfering: Makes work and installation easy.
• Anti-Vibration Design: Improves evacuation of chips, reduces burr, and produces smooth and precise cutting.

All these make the CNC milling tool the most appropriate for cutting metal with precision, industrial machining, and complex machining.

Types of CNC Milling Tools

• End Mill CNC Tool

An end mill CNC tool is the most popular kind of milling cutter. Available in square, ball nose, or corner radius, it is operated in slotting, profiling, and finishing operations.

• Ball Nose CNC Milling Cutter

The end of this tool is rounded, and that is why it is a perfect option with 3D contouring, multifaceted surface finishing, and mold making. It is also applied to reduce tool marks and produce smooth surfaces, typically in aerospace and precision industries.

• The CNC Milling Tool is Composed of Solid Carbide

They are high-speed tools that operate on hard materials. They are the stiffest, hardest working, durable, and durable in wear.

• High-Speed Steel CNC Cutter

HSS cutters are simple, adaptable, and economical, and are adapted to moderately-speed machining. They provide a fair tradeoff between workability and hardness to suit the majority of typical metalworking tasks.

• CNC Slotting Cutter

Slotting cutters are tools that cut straight edges and correct dimensions in accurate grooves and slots in workpieces.

• CNC Face Mill Cutter

Face mills are finished with high-efficiency surface finishing, which provides a smooth and flat surface to a large area with a very small number of passes.

Technical Specifications: CNC Milling Optimization

Essential insights to optimize the performance of a CNC tool include:

• Cutting Speed: The aluminum and soft metal applications are appropriate for using the carbide CNC tools, which are conducive to high-speed operations. HSS devices can be used with average speeds.
• Feed Rate: Ideal feed is applied to produce a smooth flow of chips and prevent tool wear.
• Flute Length: The longer the flute, the deeper it can cut; also capable of cutting less rigidly; the shorter the flute, the more stable it is.
• Tool Diameter: Both Metric and inch-based tools may suit a broad variety of machining needs.
• Chip Load: Chip load defines the amount of material to be removed on a tooth and eliminates tool breakage.
• Helix Angle: Influences the chip evacuation, cutting force, and surface finish.

These parameters are set to get high-performance machining with minimum downtime.

Applications and Use Cases

CNC tools can be applied in a range of other fields:

• CNC Machining Tool: An Elementary component in automated and multi-axis milling.
• Precision Metal Cutting: It cuts efficiently aluminum, hardened alloys, and stainless steel.
• Industrial Milling Cutter: Industrial milling cutter is applied in mold production, aerospace, automotive, and medical equipment production.
• Metallic Cutting Tool: It is used to work on high-strength and hardened steels with advanced finishing.

Advantages of AccurateCut CNC Mills

Some of the benefits of buying good-quality tools at AccurateCut include:

• Reproducible Material and Coating Quality: TiSiN or AlTiSiN Coated ZK30UF substrate is wear-resistant and strong.
• High-Strength Design: Large core diameters and alloy rod body with full-grinding edges increase rigidity, reduce breakages, and improve cutting performance.
• Streamlined Geometry: Smooth Handles, Sharp Edges, and Chamfered Designs: This enables precise positioning, chip clearing, and steady operation.
• Large Compatibility: It can be utilized in CNC machining centers, engraving machines, and high-speed machines.
• Precision and Speed: Center drill design, anti-vibration, and full grinding surfaces reduce downtime, improve surface finish, and save tool life.

Conclusion

In modern machining, CNC milling has a positive role due to its accuracy, versatility, and efficiency. AccurateCut provides CNC milling tools of excellent quality along with ZK30UF, TiSiN, and AlTiSiN coating, anti-vibration designs, and ideal geometries. Ball nose CNC milling cutters, roughing end mills, or solid carbide CNC tools, either way, you must invest in quality to achieve long-term reliability and high-performance scores.
