HRC60 Carbide 2 Flutes Standard Length Ball Nose End Mills #7442
For Order Over $300 Get $15.00 Off, Code:
15For Order Over $300 Get $15.00 Off, Code:
50For Order Over $3000 Get $100.00 Off, Code:
100Price range: $2.08 through $72.94
Free shipping over $600, If you need a more favorable price, please contact us directly.
Stock:
Technical Specs:
- Brand: ACCURATECUT
- Hardness: HRC60
- Coating: AiTiSiN
- Helix Angle: 30 Degree
Share
You May Also Like

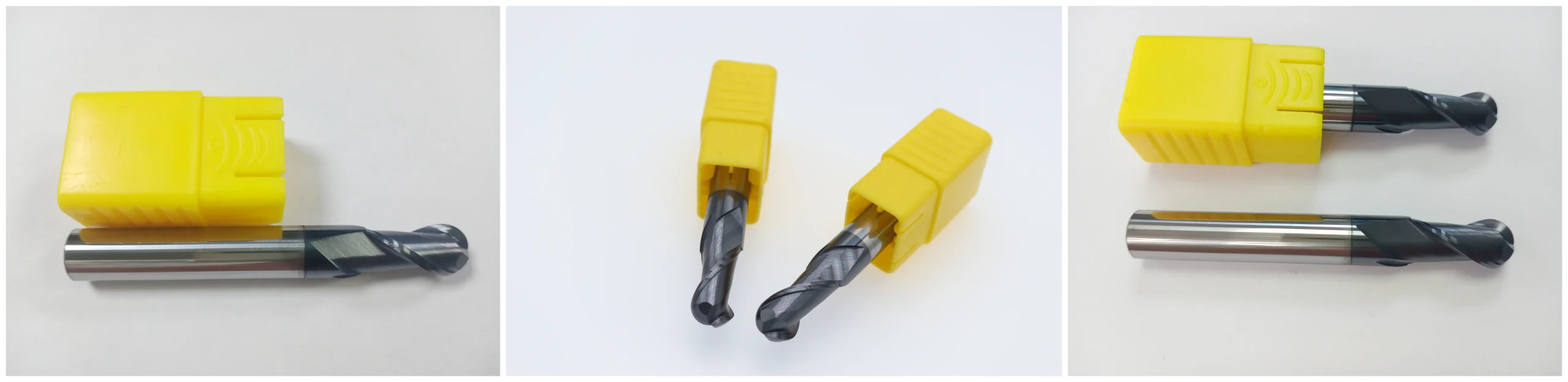

The Ball Nose End Mills can be termed as all-purpose cutting tools that are used in profiling, slotting, and contouring machines. The rounded end implies that it is simple to complete some of the curved surfaces and cavities accurately. These mills are manufactured of tungsten carbide that is of high quality, thus giving them good wear resistance, stability, and service life. They can also be used in machining hardened steel, cast iron, and aluminum alloys, and are also very precise and efficient when used in mold and die applications.
Key Features:
-
Spherical Cutting Edge: Graves edges and surfaces.
-
Carbide Material: This type of material is tough and thus hard-wearing and lasting.
-
Flexible Machining: It can fit hard and soft materials.
-
Precision Ground: It offers the cut and decrease of vibration.
Performance Advantages:
-
High Accuracy: Finishes complicated surfaces to high quality.
-
Heat Resistance: The material maintains a cutting performance during high temperatures.
-
Large Removal of Chips: Geometry is able to work without interruption.
-
Higher Productivity: Reduced the tool changes due to long-term edge sharpness.
| Model | Blade diameter | Blade length | Shank diameter | Total length |
| DT1230003502F | 3 | 6 | 3 | 50 |
| DT1230003752F | 3 | 6 | 3 | 75 |
| DT1230031002F | 3 | 6 | 3 | 100 |
| DT1230001502F | 1 | 2 | 4 | 50 |
| DT1230015502F | 1.5 | 3 | 4 | 50 |
| DT1230002502F | 2 | 4 | 4 | 50 |
| DT1230025502F | 2.5 | 5 | 4 | 50 |
| DT1230003502F | 3 | 6 | 4 | 50 |
| DT1230035502F | 3.5 | 7 | 4 | 50 |
| DT1230004502F | 4 | 8 | 4 | 50 |
| DT1230004752F | 4 | 8 | 4 | 75 |
| DT1230041002F | 4 | 8 | 4 | 100 |
| DT1230001752F | 1 | 2 | 4 | 75 |
| DT1230015752F | 1.5 | 3 | 4 | 75 |
| DT1230002752F | 2 | 4 | 4 | 75 |
| DT1230025752F | 2.5 | 5 | 4 | 75 |
| DT1230003752F | 3 | 6 | 4 | 75 |
| DT1230005502F | 5 | 10 | 5 | 50 |
| DT1230005752F | 5 | 10 | 5 | 75 |
| DT1230051002F | 5 | 10 | 5 | 100 |
| DT1230001502F | 1 | 2 | 6 | 50 |
| DT1230015502F | 1.5 | 3 | 6 | 50 |
| DT1230002502F | 2 | 4 | 6 | 50 |
| DT1230025502F | 2.5 | 5 | 6 | 50 |
| DT1230003502F | 3 | 6 | 6 | 50 |
| DT1230004502F | 4 | 8 | 6 | 50 |
| DT1230005502F | 5 | 10 | 6 | 50 |
| DT1230006502F | 6 | 12 | 6 | 50 |
| DT1230006752F | 6 | 12 | 6 | 75 |
| DT1230061002F | 6 | 12 | 6 | 100 |
| DT1230061502F | 6 | 12 | 6 | 150 |
| DT1230007602F | 7 | 14 | 8 | 60 |
| DT1230008602F | 8 | 16 | 8 | 60 |
| DT1230008752F | 8 | 16 | 8 | 75 |
| DT1230081002F | 8 | 16 | 8 | 100 |
| DT1230081502F | 8 | 16 | 8 | 150 |
| DT1230009752F | 9 | 18 | 10 | 75 |
| DT1230010752F | 10 | 20 | 10 | 75 |
| DT1230101002F | 10 | 20 | 10 | 100 |
| DT1230101502F | 10 | 20 | 10 | 150 |
| DT1230011752F | 11 | 22 | 12 | 75 |
| DT1230012752F | 12 | 24 | 12 | 75 |
| DT1230121002F | 12 | 24 | 12 | 100 |
| DT1230121502F | 12 | 24 | 12 | 150 |
| DT1230014802F | 14 | 28 | 14 | 80 |
| DT1230141002F | 14 | 28 | 14 | 100 |
| DT1230141502F | 14 | 28 | 14 | 150 |
| DT1230161002F | 16 | 32 | 16 | 100 |
| DT1230161502F | 16 | 32 | 16 | 150 |
| DT1230181002F | 18 | 36 | 18 | 100 |
| DT1230181502F | 18 | 36 | 18 | 150 |
| DT1230201002F | 20 | 40 | 20 | 100 |
| DT1230201502F | 20 | 40 | 20 | 150 |
Q&A
-
Q: Who are we? Tom 2024-10-08A: ACCURATECUT was established in 2015. It has been growing and has passed Rheinland ISO 9001 With international advanced manufacturing equipment such as SACCKE high-end five-axis grinding center in Germany, ZOLLER six-axis tool testing center in Germany, and PALMARY machine tools in Taiwan, it is committed to producing high-end, professional, efficient and durable CNC tools. By Alice on 2024-10-08
-
Q: Are you trading company or manufacturer? Alex 2024-10-20A: We are manufacturer of carbide tools. By Lee on 2024-10-20
-
Q: Can you send the product to our forwarder in China? Emma 2025-2-17A: Yes, if you have a forwarder in China, we are happy to send the products to him/her. By Wu on 2025-2-17
-
Q: What payment terms can be accepted? Jason 2025-3-10A: Usually we accept T/T. By Chen on 2025-3-10
-
Q: Do you accept OEM orders? Lily 2025-4-21A: Yes, OEM and customization are available, we also provide custom label printing service. By David on 2025-4-21
