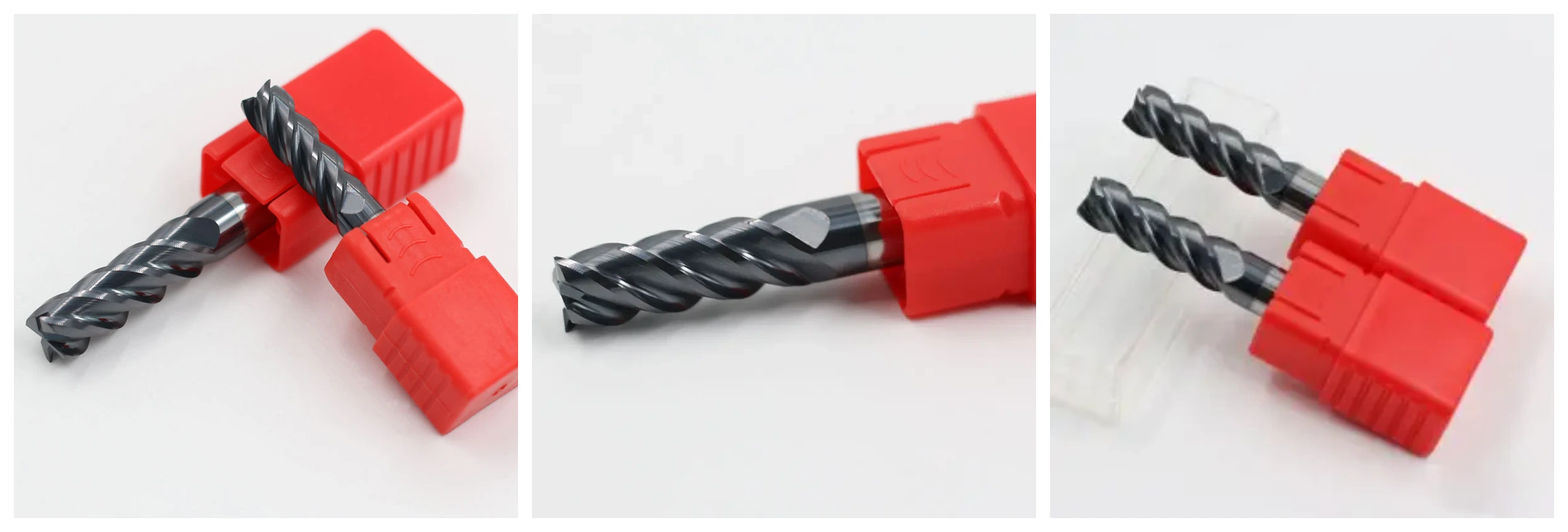

HRC60 Carbide 4 Flutes Standard Length End Mills #6229
For Order Over $300 Get $15.00 Off, Code:
15For Order Over $300 Get $15.00 Off, Code:
50For Order Over $3000 Get $100.00 Off, Code:
100Price range: $2.08 through $72.94
Free shipping over $600, If you need a more favorable price, please contact us directly.
Stock:
Technical Specs：:
- Hardness: HRC60
- Flutes: 4
- Material: Tungsten Carbide
- Application: Side milling/Face milling
Share
You May Also Like
Price range: $2.08 through $72.94
8.8K Sold

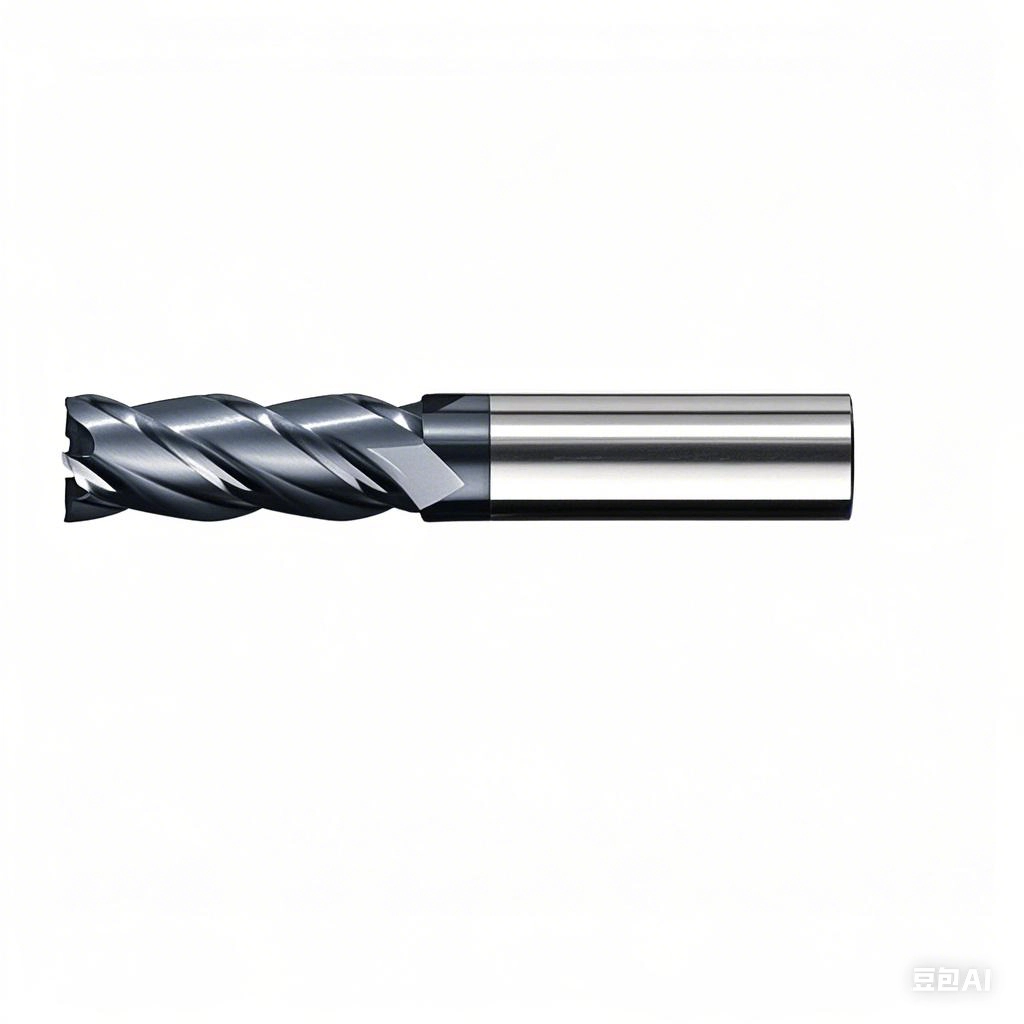

The 4 Flute Flat End Mill is a versatile milling machine is comprised of the finest tungsten carbide that is of high quality, it is hard and its dimensional stability levels are high. The tool possesses clean sharp sides due to a flat tip and four flutes due to the high rates of material removal and smooth cutting features. It may be a reasonable option in the situation with CNC and traditional machining, and the accuracy and stability is a problem.
Key Features:
-
Flat Cutting Edge: Cuts flat and sharp corners on all the cuts.
-
Four-Flute Design: The design enables the chip and high feed rates to be in steady-state.
-
Very Long Lasting Long Carbide Material: It is a wear and heat resistant material.
-
Precision Engineering: Accuracy of minor machining.
Performance Advantages:
-
Clean, Accurate Results: Produces clean edges on surfaces that are sharp without a burr and rough.
-
Increased Removal of Material: Faster and less expensive and less machining time.
-
High Dimensional Control: Tolerances are tight when on a long run use.
-
Long Life: Is more robust and the quantity of idle moments and tool changeovers is decreased.
Specification
| Blade diameter | Blade length | Shank diameterD | Total lengthL |
|---|---|---|---|
| 3 | 8 | 3 | 50 |
| 3 | 12 | 3 | 75 |
| 3 | 15 | 3 | 100 |
| 1 | 3 | 4 | 50 |
| 1.5 | 4 | 4 | 50 |
| 2 | 5 | 4 | 50 |
| 2.5 | 7 | 4 | 50 |
| 3 | 8 | 4 | 50 |
| 3.5 | 10 | 4 | 50 |
| 4 | 10 | 4 | 50 |
| 4 | 16 | 4 | 75 |
| 4 | 20 | 4 | 100 |
| 5 | 13 | 5 | 50 |
| 5 | 20 | 5 | 75 |
| 5 | 25 | 5 | 100 |
| 1 | 3 | 6 | 50 |
| 1.5 | 4 | 6 | 50 |
| 2 | 5 | 6 | 50 |
| 2.5 | 7 | 6 | 50 |
| 3 | 8 | 6 | 50 |
| 3.5 | 10 | 6 | 50 |
| 4 | 10 | 6 | 50 |
| 4.5 | 12 | 6 | 50 |
| 5 | 13 | 6 | 50 |
| 5.5 | 15 | 6 | 50 |
| 6 | 15 | 6 | 50 |
| 6 | 25 | 6 | 75 |
| 6 | 30 | 6 | 100 |
| 6 | 40 | 6 | 150 |
| 7 | 18 | 8 | 60 |
| 8 | 20 | 8 | 60 |
| 8 | 28 | 8 | 75 |
| 8 | 35 | 8 | 100 |
| 8 | 50 | 8 | 150 |
| 9 | 23 | 10 | 75 |
| 10 | 25 | 10 | 75 |
| 10 | 40 | 10 | 100 |
| 10 | 50 | 10 | 150 |
| 11 | 28 | 12 | 75 |
| 12 | 30 | 12 | 75 |
| 12 | 45 | 12 | 100 |
| 12 | 60 | 12 | 150 |
| 14 | 35 | 14 | 80 |
| 13 | 45 | 14 | 100 |
| 14 | 45 | 14 | 100 |
| 14 | 60 | 14 | 150 |
| 15 | 45 | 16 | 100 |
| 16 | 45 | 16 | 100 |
| 16 | 60 | 16 | 150 |
| 18 | 45 | 18 | 100 |
| 18 | 70 | 18 | 150 |
| 20 | 45 | 20 | 100 |
| 20 | 70 | 20 | 150 |
Q&A
-
Q: What materials can this end mill cut? Tom 2024-10-08A: This end mill is suitable for processing various materials including carbon steel, alloy steel, mold steel, and stainless steel. By Alice on 2024-10-08
-
Q: How should I choose the correct end mill size? Alex 2024-10-20A: Selection depends on your specific machining application, such as depth, material type, and cutting path. Please refer to our size chart or contact us for recommendations. By Lee on 2024-10-20
-
Q: What’s the advantage of the AITiSiN coating? Emma 2025-2-17A: AITiSiN coating offers excellent wear resistance and heat resistance, extending tool life and improving cutting performance. By Wu on 2025-2-17
-
Q: Can this end mill be used for high-speed machining? Jason 2025-3-10A: Yes, it is optimized for high-speed and high-efficiency machining, especially in large batch production environments. By Chen on 2025-3-10
-
Q: How should the tool be stored and maintained? Lily 2025-4-21A: Store in a dry and clean environment. Avoid contact with hard objects. Clean the tool after use and inspect for wear regularly. By David on 2025-4-21
