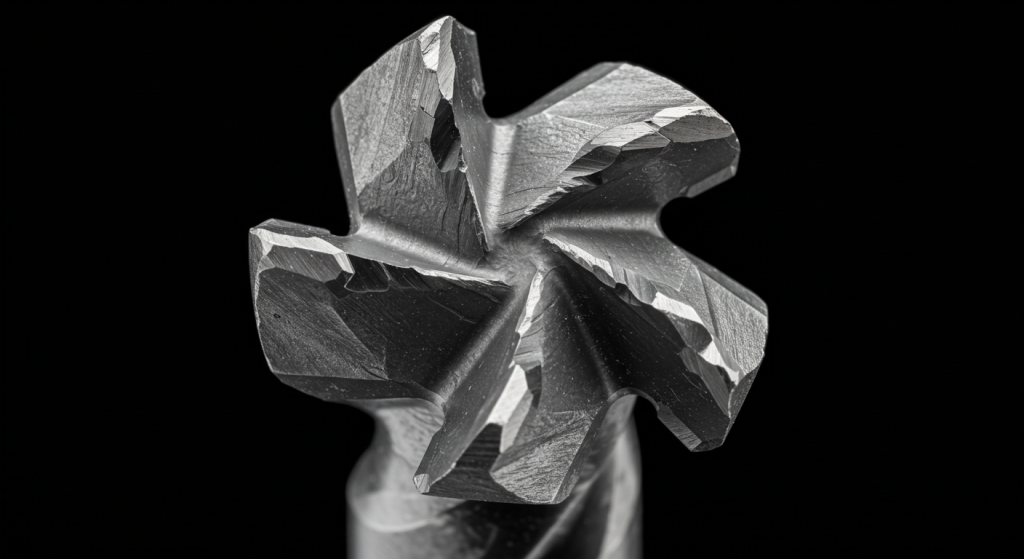

What is a Carbide Drill Bit?

A carbide drill bit is a special cutting tool used to make an accurate cut in hard materials. Carbide bits do not lose sharpness or structure to extreme heat like HSS (High-Speed Steel) bits can. This entails them being favored for high-speed machining, CNC drilling, and metal cutting technology. Such drill bits have a tungsten carbide composition, a wear-resistant, highly-hardened material that is very efficient in cutting. Carbide twist drill bits have the cutting-edge geometry that keeps the chip clean and the hole size correct, even in the most demanding industrial applications.

Types of Drill Bits

Solid Bit

The solid carbide drill bit is highly rigid and can be applied in precision drilling equipment found in the aerospace, automotive, and engineering markets. It offers excellent tool life and durability to allow operators to attain a high cutting speed and feed rate with a minimum deflection.

Carbide-Tipped Drill Bit

A carbide-tipped drill bit is a hybrid of a steel body and the cutting edge capability of tungsten carbide tips. This hybrid design is very cost-effective and provides good cutting performance on hard metals.

Tungsten Bit

The tungsten drill bit is known to cut easily through hardened steel, cast iron, and composite material, due to its high degree of hardness. It is best used in deep hole drilling tools and drilling in the industry.

Micro Bit

A micro bit offers high micro-drilling accuracy suitable for drilling miniature components like electronics or medical equipment.

CNC Bit

A computer numerical control (CNC) drill bit is a CNC bit. It is repeatable, high-speed, and consistent performance at mass production.

Coated Bit

The bit is coated with a multi-layer coating including TiAlN (Titanium Aluminum Nitride) or TiCN, which improves its heat resistance and wear ability. These finishes are used to preserve sharpness and decrease the cutting force and friction.

Technical Overview: Construction and Operation

All precision drill bits are designed to have an advanced cutting edge geometry, which allows maximum chip evacuation, penetration of the cutting fluid, and feed rate management. Important technical parameters are:

Drill Bit Hardness: Above 90 HRC

Spiral Angle: 30deg-35deg to remove the chip easily.

Flute Design: Maximized chip evacuation system.

Technology in Wear-Resistant Tool Coating: Multiple layers of wear-resistant coatings.

Feed Rate and Speed: Can be adjusted based on material density.

These bits, with cutting force reduction technology, provide efficient cutting mechanics and optimum drill angle, enabling high torque drilling in even dense alloys.

The Pros of Carbide Drill Bits

High Hardness and Strength

These drill bits can retain their cutting edge at high temperatures due to tungsten carbide, making them better than the traditional HSS bits in cutting metal.

Extraordinary Clothing and Thermostatic Protection

The multi-layer coated carbide bits can endure friction, making them the best material to use in high-speed drilling performance and constant production cycles.

Precision Hole Accuracy

Regardless of whether it’s CNC drilling or manual workshop drilling equipment, the accuracy of hole-making tools is guaranteed with dimensional consistency and minimal drill wander.

Extended Tool Life

The outstanding tool life and functionality reduce the rate of replacement, and the industrial carbide drill tool is thus cost-effective in the long run.

Multiplicity of Media

These bits are efficient on stainless steel, aluminum, wood, plastic, and cast iron, and are therefore multi-material drills.

Enhanced Chip Evacuation

They use flute design to remove chips, thereby avoiding clogging, leading to smooth drilling and long life.

Incompatibility with CNC Machines

CNC bits are fully compatible with more sophisticated manufacturing solutions and allow high-speed automation and precision engineering components.

Uses

Solutions in Industrial Drilling

Carbide bits are used in the metalworking, aerospace, automotive, and engineering industries to provide industrial drilling and cutting performance and precision.

CNC Machining Tools

They play a vital role in CNC machining, where accuracy in batch production is ensured by high-speed bits.

Woodworking and Composites

The use of special bits designed to cut wood and composite material without causing tears in non-metallic material.

Deep Hole and Micro Drilling

Micro bits enable the precision of micro-holes, and the high stability and uniformity of cutting with deep hole drilling are guaranteed.

How to Use Carbide Drill Bits?

Always remember when cutting with bits:

• An effective coolant to use in carbide drilling to reduce the amount of heat.
• The right material, cutting speed, and feed rate.
• Clamp work pieces to minimize vibration.
• Oil to make the evacuation of chips smoother.

Maintain the drill bits to maintain the edge sharpness.

AccurateCut Metal Drill Bit Set

At AccurateCut, we have created a metal drill set that is capable of cutting hard materials and providing reliable drilling on various materials for professionals. All bits are made of high-speed steel, which is hard, tough, and wear-resistant.

 Key Features:

• Sharp cutting alloy tungsten steel drill bit.
• Coating performance and anti-vibration design are stable.
• Spiral angle of 35 degrees to maximize production.
• Complete grinding edge without micro-chipping.
• Clean cutting precision tips and less wandering.

This is a very versatile kit, with a variety of sizes, to suit a variety of industrial and repair purposes. The storage case is well configured to save your tools and is ideal for workshops and field action.

Selecting the Appropriate Carbide Drill Bit

To select the most suitable carbide drill bit to use on stainless steel or any other material:

• Test the material hardness and the depth of drilling.
• It should be taken into account the type of coating (e.g., TiAlN – heat, TiCN – wear).
• Insert proper feed rates to prevent tool breakages.
• Drill bit size compatibility chart.
• Geometry of the match tool with the application type.

When using CNC operations, use a precision carbide drill that has optimized flute geometry and coolant channels.

Purchasing Advice

Need a carbide drill bit on sale, or need to buy a bit online? At AccurateCut, you’ll find:

• Best-rated drill bit sets.
• Wholesale industries drill bits.
• Tailor-made carbide drills.
• Inexpensive carbide drill sets.
• Carbide drilling solutions are used industrially.

Our professional carbide drilling tools are designed to achieve the international standard in machining, which is quality, precision, and value.

Conclusion

Carbide drill bit is the ultimate innovation in drilling, as it combines strength, accuracy, and longevity. Tungsten carbide construction, multi-layered coating, and innovative design have enabled these tools to enable industries to produce high-speed machining with perfect accuracy. AccurateCut offers a high-quality bit in CNC machines, stainless steel, and woodworking, specifically designed to perform on a professional level. Get the complete product line of industrial bits at AccurateCut.com – your partner in excellent engineering.
