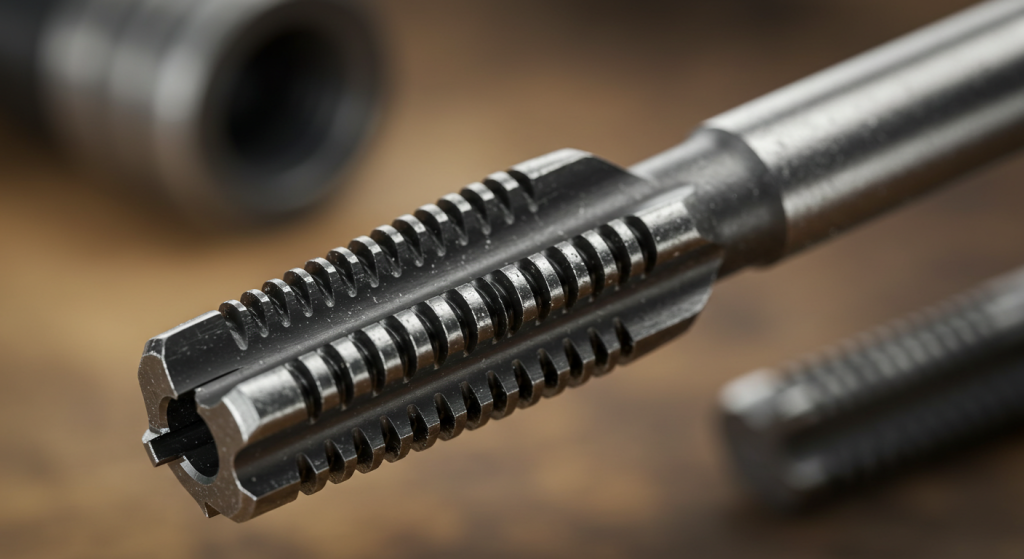

What is an NPT Pipe Tap?

An internal tapered thread in a pipe or fitting is cut with a pipe tap NPT. They are 60-degree threads with a taper of 1:16 per inch or a slight decrease in diameter over the length of the thread. The resulting tapering effect allows the compression of the thread as it is drawn tight, forming a mechanical seal reinforced by thread sealant or Teflon taping in a system that requires full leak proofing.

NPT threads. According to the ANSI B1.20.1 thread specification, NPT threads are typically used in domestic and industrial pipeline systems, and where pressure drop occurs through which liquid or gas is being transported. It is due to the high fit that NPT thread engagement will offer, which will result in increased durability and eliminate leaks, thread slippage over time. These standards have made NPT pipe tap inapplicable to both oil and gas and to HVAC, motor, and manufacturing sectors, where a little thread error will cause hours of downtime or total system failure at considerable cost.

How Does the NPT Pipe Tap Work?

The NPT pipe tap is based on a very simple, yet mechanically advanced principle; the internal threads are cut into a pre-drilled cavity, and a controlled taper is cut in such a way that the pipe fits precisely. In this operation, sometimes referred to as tapered thread cutting, the material in the hole is removed or the material flows in a plastic state to form a conical-shaped thread that fits an external pipe thread.

The thread in such a type of tap is made by flowing plastic through the work material, and the inner threads are not only dimensionally accurate but also stronger due to work hardening. The threads are very uniform and engage well.

Pipe Taps Straight Flute Design: Accuracy and Strength in Engineering

One of the types that has been particularly treasured is the pipe tap straight flute because it can withstand the harsh industry conditions. These taps are composed of high-speed steel (HSS) that offers the best combination of hardness, wearability, and service life, such that they can be reused on carbon steel, cast iron, and alloy tubing.

The design of the straight flute is to make the chip harder to remove, thus enabling the cutting action to be smooth as well as the chip to not accumulate, thereby leading to tap breakage or thread distortion. Such cutting edges are designed to minimize friction and are applied in threading accuracy, permitting a smoother surface finish and reduced tool wear. They also lend themselves to machine as well as hand tapping and provide a variety of versatility to a variety of production setups.

The similarity of the straight flute taps enhances threading performance overall, and their high strength extends the life of the tool. It is important to note, though, that regrinding is not possible, and thread holes must be treated with care to bring out the best possible quality.

Key Features:

• The chips are ejected with efficiency, causing less clogging and a problem-free operation.
• The female threads are consistent as a result of the sliding contact design of the tool.
• These taps have a breakage strength, and they are not broken in these extreme conditions.
• The result of the controlled sliding of the cutting face is excellent surface quality.
• They are tapped to obtain high speed, and hence can be tapped in great quantity, without impairment of quality.

To industry customers, AccurateCut has delivered dependable performance and a full range of quality-engineered threading taps to comply with international standards.

Material and Type Variants

Various types of taps are available in a variety of materials, each suited to the machining application required:

HSS NPT Tap (High-Speed Steel): Balances toughness and edge retention in the majority of industrial metals.

Cobalt NPT Tap: Used in cutting hardened steels that are hard, and also in repelling wear in hardened materials.

Carbide NPT Tap: Offers unmatched performance in high volume production and abrasives.

The NPT spiral flute taps are designed to fit into blind holes, and the channels push the chips out of the cut section and NPT straight flute tabs must be fitted in through holes where the chips can be evacuated easily.

Parallels to Threads and Standard

The NPT vs BSP threads need to be known because they are similar to each other. BSP with a 55 55-degree profile cannot be used in an NPT thread with a 60-degree angle. Similarly, NPTF (Dryseal) threads are even safer as they do not have to be sealed, as the thread structure offers a metal-to-metal seal.

Various markets use the ISO thread standard and Unified National Thread (UN), and a thread compatibility chart and thread identification guide should be consulted before selecting a tap. This will ensure that the pipe thread measuring guide aligns with the application requirements, particularly systems that have tight engineering requirements and fits.

Industrial Applications

These taps are also very flexible and therefore highly required in industries. They offer pressure-tight hydraulic fittings and air-sealed pneumatic pipe connections. Threading processes of gas piping and plumbing piping rely heavily on the use of high-quality NPT taps so that the output remains the same.

The quality of the industrial-grade pipe threading tools applied in the oil and gas pipeline fittings industry is also high because safety is the most important thing in the industry. NPT threading of vehicle fluid fittings, HVAC connections, and equipment repairs also helps to make the threading type popular as an effective assembly technique.

To locate performance threading solutions, one can turn to the known manufacturers, including AccurateCut, a manufacturer of customized NPT taps and precision engineering equipment.

Manufacturing Prowess and Tool Quality

AccurateCut machines individual professional NPT pipe tap using a controlled CNC threading process to deliver machining accuracy and repeatability. When developing our tools and machine accessories, we particularly focus on hardness, service life, wear resistance, and protective coating to extend the service life. Improved metal cutting technology and improved geometry optimization result in less engagement, reduced torque, and no change in thread form integrity.

Our solutions are innovative, and their quality is highly controlled and is tailored to the standards of modern mechanical assembly, pipe connection, and toolroom equipment.

Maintenance and Best Practices

Threading and the life of tools are directly related to maintenance. The operators should always use proper tapping methods to ensure alignment and a consistent cutting torque. Early wear can be avoided by the appropriate selection of tap wrench compatibility and cutting speed, and feed rate.

• Regular lubrication is important to reduce heat build-up, and periodic inspection with thread gauges to monitor tolerances. Threading sealant used as an add-on to tapping in pressurized systems enhances the integrity of the joint.
• Common mistakes, such as overcutting, poor lubrication, and inappropriate drill sizing, may degrade the NPT thread tolerance, and operators should be trained on the proper handling and alignment of the setup.

Conclusion

NPT pipe tap also indicates the precision and finesse of the quality and non-leaky threading. It incorporates standard geometry, tapered thread cutting, along with the high-quality HSS, cobalt, and carbide, which makes every thread a good seal that can handle the industry forces. Since then, AccurateCut has remained a preferred partner of professionals requiring industrial-grade taps, custom design or high-performance threading solutions, designed to excellence to meet the modern industry.
