Spiral Tap – High-Performance Threading Tool for Precision Machining

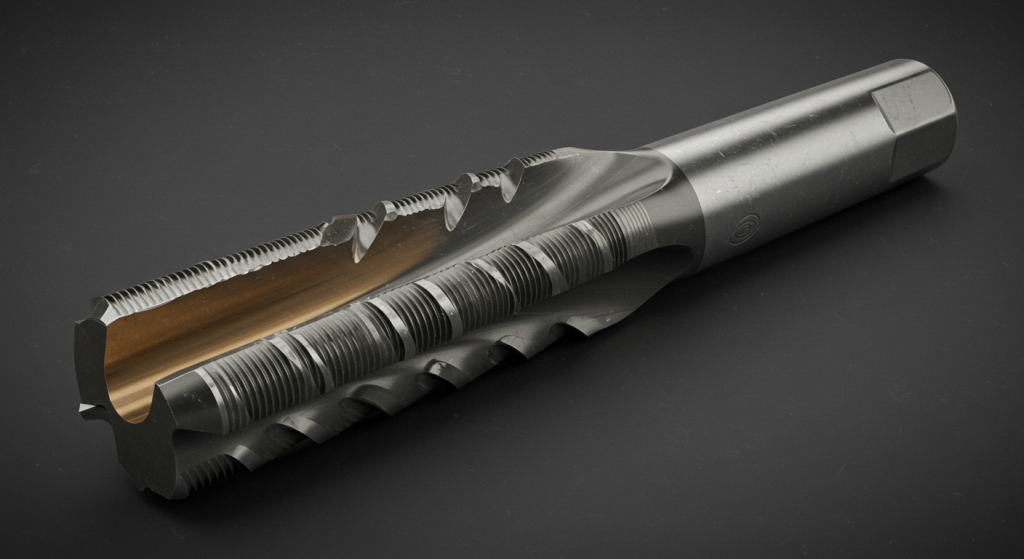

What is a Spiral Tap and How?

A spiral tap, also sometimes called a spiral flute tap, is a thread-cutting tool designed to cut internal threads (female threads) in a hole that has been drilled. Its spiral flute shape is an essential factor in removing chips; chips move upwards towards the direction of the moving area. This gives taps the best application in blind holes, where straight flute tabs may find it difficult.

The geometry of the spiral flute design decreases cutting resistance, improves chip control, and offers burr-free thread finishing. The helix angle of the flute will dictate the aggressiveness of the chips being cut away, providing smooth cutting capability and a high-quality finish.

Construction and Material: Constructed to Be Strong and Durable

The composition of material is one of the most significant factors in selecting a tap. High-performance materials such as: are used in the spiral tap.

High-Speed Steel (HSS Tap) - It is characterized by cutting edges, toughness, and wear resistance.

Cobalt Alloy Tap (HSSCo)- It has greater heat resistance, hardness, and long life, with the capability to penetrate stainless steel and hard metals.

Titanium Coated Tap (TiN or TiCN)- Adds extra surface hardness, corrosion, and lubricity, enhancing the flow of the chip and reducing friction.

Carbide Tap - Designed to run fast CNC machines, the taps are used in hard or abrasive materials where HSS might wear prematurely.

Characteristics and Strengths

This tool is distinguished by its design in spiral flutes. Let us discuss its most useful features and the technical benefits it offers to any threading work:

Smooth Chip Evacuation: The spiral flutes evacuate chips in blind holes without creating clogs, which can cause tap breakage.

Sharp Cutting Edges: Ideally used to cut thread with a clean finish and free of a burr.

High Torque Capacity: Edge and Flute geometry experience optimization of cutting efficiency and tool stability.

Long Tool Life: Coatings such as TiN and TiCN enhance the wear resistance and hence the longevity of the machining process in the CNC machine operating at high speed.

Heat Resistance: Cobalt steel does not lose its hardness at high temperatures, which is ideal when threading stainless steel.

Versatility: Can be used on various materials such as steel, cast iron, aluminum, brass, copper, and even plastic.

No Polishing Required: Cutting surfaces are precision ground, which means that they are ready to use right out of the box.

Classifications and Uses

Various designs of taps have different uses. Realizing these will aid in the selection of the appropriate tap to use in your operation:

Taper Tap: This is the most suitable tap to use on softer materials when opening up new threads.

Plug Tap: General-purpose threading medium depth. This tap is used to thread around the bottom of a blind hole.

Spiral Point Tap (Gun Tap): Forces chips forward, and can be used in through holes.

Right-Hand Tap: The right-hand tap is used in a wide variety of threading operations.

Left-Hand Tap: Tapped to fit a special arrangement or reverse threading.

Spiral Tap Stainless Steel Hard Metals

In the case of stainless steel, tool performance and chip evacuation become paramount. Stainless steel is likely to work-harden rapidly, with the inability to remove chips leading to breakage or surface damage.

• The cobalt-based HSSCO spiral tap is unequivocally hard, heat-resistant, and stable during wear. Its deep helix flute makes sure the chips are smoothly pulled out, leaving the cutting area clean and minimizing friction.
• In the case of hard metals or tough alloys, a TiN-coated or carbide tap should be used. These materials are heat-resistant, will not micro-chip, and will remain sharp even with heavy loads.

Spiral Tap on Soft Materials and Aluminum

Soft metals such as aluminum, copper, etc, need a sharp cutting edge and smooth evacuation of the chip to prevent the formation of burrs or thread deformation. HSS tap or TiCN-coated tap makes a fantastic performance with clean, smooth threads and no chip welding. Spiral aerospace and automotive aluminum tapping. These taps facilitate quick tapping of aluminum with high-speed performance with no tool adhesion in die-casting molds.

How to Use a Spiral Tap?

To achieve the best results and tool life, consider the following best practices:

Choose the Right Tap Size: See a thread specification book or tap size chart.

Make Sure it is in the Correct Position: bad alignment may lead to poor thread quality or breakage.

Lubricate Properly: Cutting oil or coolant reduces friction and heat.

Adjust Correct RPM and Feed Rate: Adjust based on material hardness.

Avoid Over-Tapping: Do not over-tap into the thread, as distortion of the thread will occur.

Check Tap Frequently: Change deteriorated or sharp taps to prevent substandard threads.

Maintenance and Care Guide

A properly maintained spiral tap may have a lifecycle of several production cycles. Safeguarding your tools:

• Clean used to eliminate chips and residue.
• Examine with the aid of the Microscope, edge wear, or chipping.
• Dull taps with precision equipment.
• Keep in protective cases to avoid corrosion and nicks.

These steps will ensure good cutting performance and burr-free thread finishing.

What is the Reason to Use AccurateCut Spiral Taps?

At AccurateCut, we are integrating high-end materials, precision engineering, and advanced coating technology to produce high-quality taps that work remarkably in any industry and materials.

• Maximum tool life at the best grade of tungsten steel.
• Fast threading with refined flutes.
• Material and condition-based high performance.
• Hard, tough, and durable design.
• Need not be polished; it is ready.

Conclusion

A spiral tap is not merely a threading device, but a foundation of high-accuracy metalwork. The right spiral flute tap can be the difference between a flowing, accurate thread and an expensive rework operation, spanning a CNC workshop to an aerospace production line. You can make the most of your industrial taps by choosing the right material, ensuring that they are well lubricated, and adopting the best practices in threading. The professionals will be guided by the AccurateCut to produce perfection in each thread. No matter what you need, check out our line of HSSCO UNC taps, cobalt taps, and titanium-coated precision tools designed for those who insist on the best.
